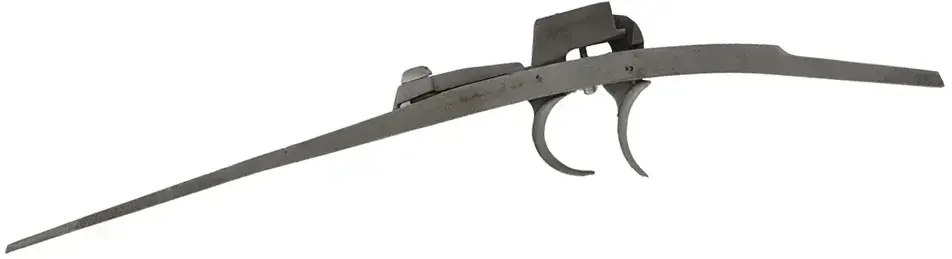

This is a unfinished but assembled L&R Hawken trigger made with an curved front trigger, otherwise identical to the straight front trigger. These were originally sold with the Sharon Hawken rifle kits. Note they have roll pins installed instead of solid pins for both triggers.
Use our early Hawken "flat grip rail" triggerguard. Use on fullstocks or early halfstock Hawken rifles. Double lever, it has free-play backlash to allow the lock to be cocked with trigger set or unset.
Spare parts may be used in identical triggers from the old Sharon Rifle Barrel Company Hawken rifle kits, once sold under the "Old West Arms" brand name.
Overall length 9-7/8", width .470, beavertail finial.
Use our early Hawken "flat grip rail" triggerguard. Use on fullstocks or early halfstock Hawken rifles. Double lever, it has free-play backlash to allow the lock to be cocked with trigger set or unset.
Spare parts may be used in identical triggers from the old Sharon Rifle Barrel Company Hawken rifle kits, once sold under the "Old West Arms" brand name.
Overall length 9-7/8", width .470, beavertail finial.
TR-LR-13-FTS
Front trigger spring, tempered steel, fits #TR-LR-1300 and 1400 double set triggers
TR-LR-13-MS
Trigger mainspring, tempered steel, fits #TR-1300 and 1400 double set triggers
TR-LR-13-MSX
Trigger mainspring screw, for #TR-LR-1300 and 1400, Hawken double set triggers
TR-LR-13-PI
Trigger pivot pin, 3/32" diameter, 1/2" width, fits several triggers
TR-LR-13-PL
Trigger plate, for #TR-LR-1300 or 1400 trigger, as cast, plate only, .470"wide
TR-LR-13-RT
Trigger, rear, tempered steel, for #TR-LR-1300 double set triggers
TR-LR-13-TAX
Trigger adjustment screw, 2-56 thread, .42" shank, fits several double set triggers
TR-LR-14-FT
Trigger, curled front, tempered steel, for #TR-LR-1400 double set triggers
