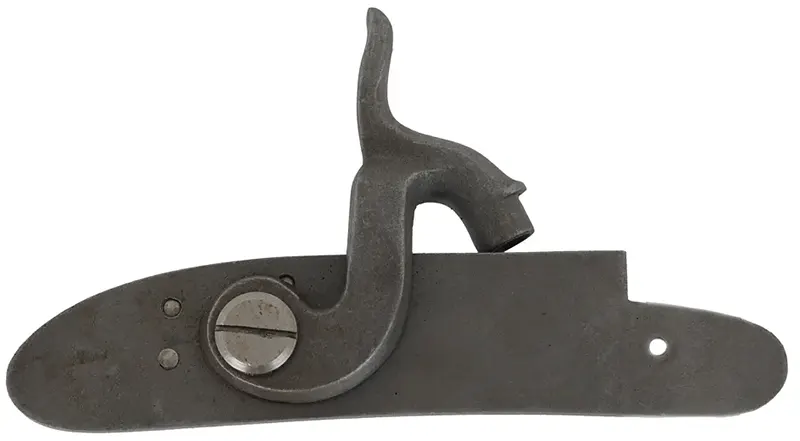

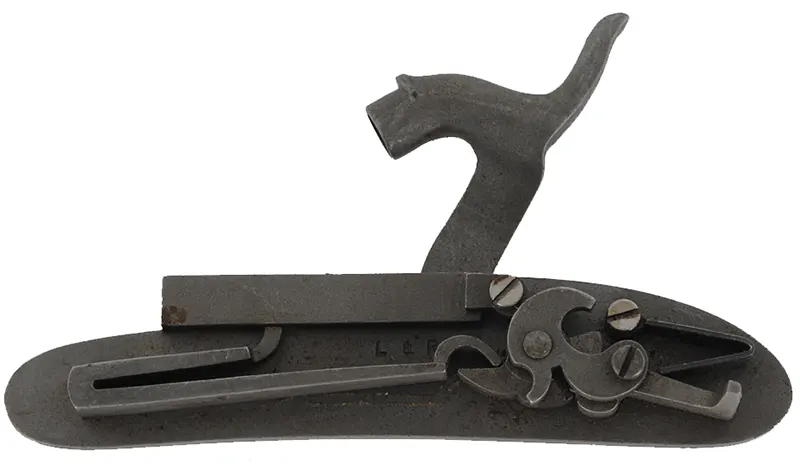

These locks were used on the late producion Sharon Barrel Company Hawken fullstock. The locks are clearly marked L&R on the inside of the lock plate, but are assembled with Siler internals. This lock would be appropriate for a Plains rifle, Ohio rifle, or late longrifle during the percussion era of 1845 to 1885. Note the square inside corner at the front of the lock plate, and the normal narrow percussion hammer, both late features. These have been in long storage and do have some scattered brown spots, which will polish off. We only have a few examples at this price.
Bridle, wax cast steel, tempered, use 6-40 screws
Fly detent, steel, tempered, with hole for pivot
Stirrup link, wax cast steel, tempered, integral pins
Sear, wax cast steel, tempered, use 6-40 screw
Tumbler, wax cast steel, tempered, cut for fly, tapped 6-40
Tumbler screw, .400" head diameter, 6-40 thread
Mainspring Vise,
deluxe English style,
for safely compressing a mainspring,
made in the U.S.A.
All sizes are nominal. Please verify with description for more information.
-
Assembled Locks - Choose Flintlock or PercussionPercussion - Assembled Locks
-
Brand of ManufacturerL&R Lock Company
-
Choose Right or Left Hand LockMatching Pair for both Right/Left Hand GunRight Hand Gun
-
Choose Style of LockHawken & Plains Rifles
-
Lock Parts by Percussion ModelM. Medina Hawken ( #LOCK-LR-100-M )S. Hawken - Right ( #LOCK-LR-100 ) ( #LOCK-LR-125 )
TOOL-VISE-DX
Mainspring Vise,
deluxe English style,
for safely compressing a mainspring,
made in the U.S.A.
