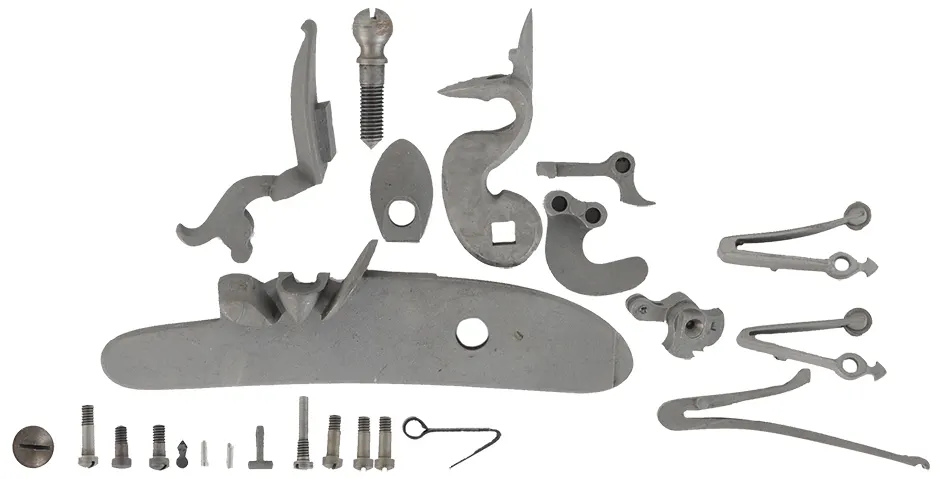

No longer offered by L&R Lock Company this is a kit form of the left hand L&R late English flintlock. Use it on American longrifles of the 1800 to 1830 era, fullstock Plains rifles, Hawken rifles, Tennessee rifles, English fowling guns and London style flint fullstock and half-stock sporting rifles. We only have this one example at this price.
This lock kit has a water-proof pan, roller bearing frizzen spring, stirrup link, stiff mainspring, and fly detent to allow the use of a set trigger. Turned raised bearing rings on the tumbler and sear minimize friction.
This lock kit has a water-proof pan, roller bearing frizzen spring, stirrup link, stiff mainspring, and fly detent to allow the use of a set trigger. Turned raised bearing rings on the tumbler and sear minimize friction.
English gun flint, 3/4 x 7/8", standard rifle, large Siler, L&R, most others. We are temporarily limiting purchase of this item to twelve per order. We will manually edit your order if your order exceeds that amount.
Fly detent, steel, tempered, with hole for pivot
Stirrup link, wax cast steel, tempered, integral pins
Tumbler screw, .400" head diameter, 6-40 thread
bridle, left, wax cast steel, use 6-40 screws
sear, left, wax cast steel, tempered, use 6-40 screw
sear spring, left, die formed steel, tempered
tumbler, left, wax cast steel, tempered, tapped 6-40
Frizzen screw, .79" length, inside mount, 6-40 thread under head, used on early 900, 03 & 05 RPL locks
Frizzen roller bearing & pin, .28" diameter, tempered
Top jaw, wax cast steel, .64" x .87", .25" hole
cock, left, wax cast steel, 1.5" throw, gooseneck
Cock, left, wax cast steel, 1.5" throw, re-inforced double throat
frizzen, left, wax cast steel, as cast, temper after fitting
frizzen spring, left, wax cast steel, tempered, cut for roller
plate, left, wax cast steel, 5.0" x 1.0", tapped 6-40
Mainspring Vise,
deluxe English style,
for safely compressing a mainspring,
made in the U.S.A.
All sizes are nominal. Please verify with description for more information.
-
