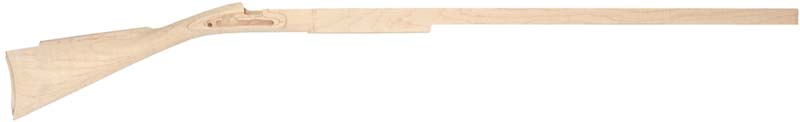

stock, Isaac Haines, pre-inlet,
"B" profile 38" swamped barrel, large Siler lock, fancy maple
Part Number: STK-IH-B-M3
Availability: Item is currently sold out.
Price: $305.00
Order Quantity:

Precision machine inlet on a 5 axis pantograph. Our “B" profile stock is pre-inlet for a "B" profile barrel in .40, .45, or .50 caliber. Shaped from the lock panels back, the forend is square ahead of the lock panels. A rectangular block from the same blank is included, for making a sliding wooden patchbox, accessories, or for testing stains and finishes. Pre-inlet for a large Siler flint or percussion lock and our small Bivins' buttplate. Inlet your choice of single, or set triggers. We offer a complete set of wax castings in iron or brass, to fit this rifle. Rod hole is drilled 3/8" full depth. About 13-3/4" pull, 3-1/4" drop form the line of sights. Buttplate area is 5 x 1-7/8".


Specifications for pre-inlet stocks:
  • Drop and trigger reach: drop is 3-1/4" from the line of sights to heel, at 13-3/4" of pull
  • Barrel channel size: Isaac Haines "B" profile 38" swamped barrel
  • Butt end: 1-7/8" wide by 5" high, cut for buttplate
  • Buttplate: #BP-BIVINS-S-B wax cast brass or #BP-BIVINS-S-I wax cast steel
  • Lock, flint: #LOCK-SL-FL-RH large right hand Siler flint lock
  • Lock, percussion: #LOCK-SL-CL-RH large right hand Siler percussion lock
  • Ramrod hole & groove: 3/8" diameter, drilled full depth
Adobe Reader required to view the files below.
Get Adobe Reader
page_119.pdf Last updated:4/25/2012 (102 KB)
