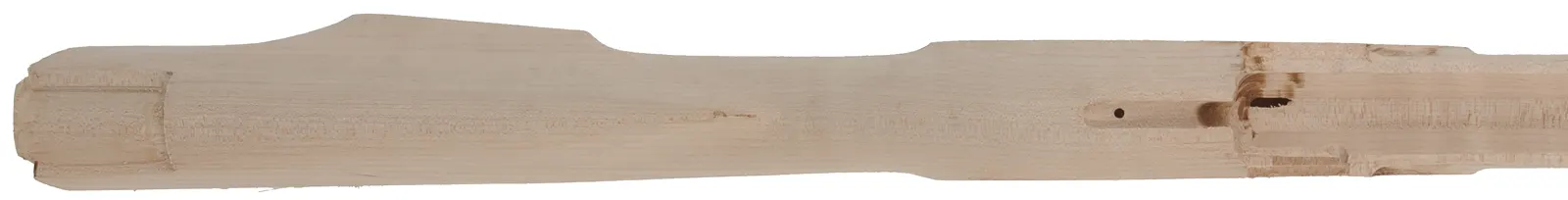

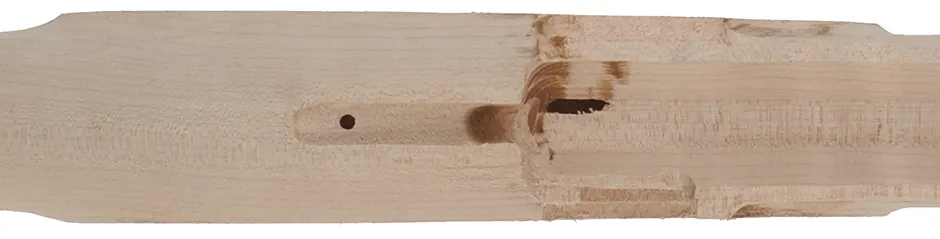

This second stock has the ramrod hole run-out into the barrel channel. This wil put the ramrod hole high enough it intersects the forward lock bolt. Solutions for this are to use a fake fron botl (wood screw), taper the rod, notch the bolt, or recut the ramrod hole from above and splice in piece of wood to cover it.

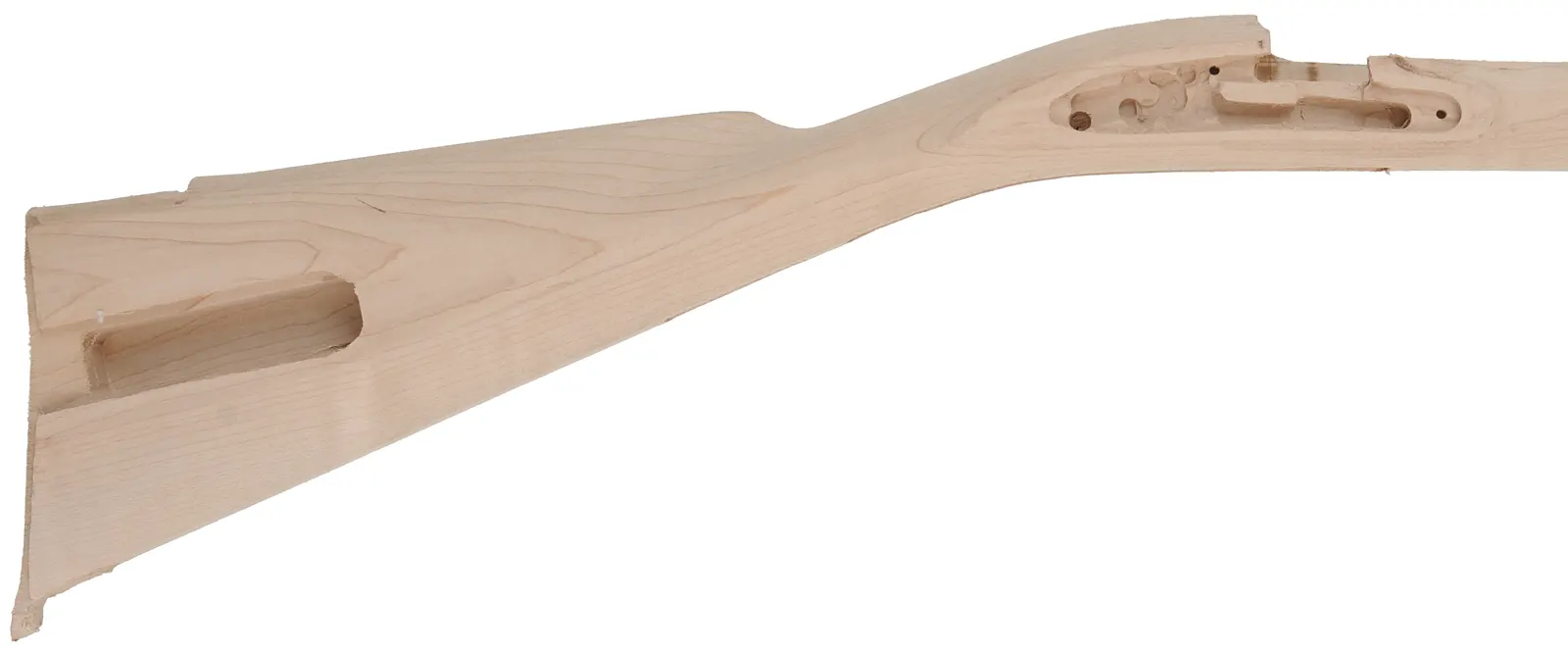

Machine inlet, on Allen’s patented 5 axis pantograph. Our J.P. Beck ‘AH-B’ stock is precision inlet for our American Heritage ‘B’ profile swamped barrel in 44” length, B profile available in .40, .45 or .50 caliber, and our large Siler lock. Each stock is precision inlet for the swamped octagon barrel, sliding wood patchbox, large Siler lock, buttplate, triggerguard, triggerplate, ramrod pipes, and drilled for a 3/8" diameter ramrod. The forend has a squared vise block to allow mounting the stock securely. Trigger reach is about 13-3/4”, with 2-1/2” drop from line of sights. Buttplate end is 5” tall, 1-7/8” wide, to fit our #BP-BECK-2-B buttplate. A sliding wooden patchbox door cut from the same blank is included. Inlet for double set triggers and triggerguard #TG-BECK-1-B. Lock panels are shaped, pre-inlet for the large Siler flint lock #LOCK-SL-FL-RH, or percussion lock, #LOCK-SL-CL-RH. The side panel is inlet for the sideplate #SP-BECK-2-B
Specifications for pre-inlet stock:
Machine inlet, on Allen’s patented 5 axis pantograph. Our J.P. Beck ‘AH-B’ stock is precision inlet for our American Heritage ‘B’ profile swamped barrel in 44” length, B profile available in .40, .45 or .50 caliber, and our large Siler lock. Each stock is precision inlet for the swamped octagon barrel, sliding wood patchbox, large Siler lock, buttplate, triggerguard, triggerplate, ramrod pipes, and drilled for a 3/8" diameter ramrod. The forend has a squared vise block to allow mounting the stock securely. Trigger reach is about 13-3/4”, with 2-1/2” drop from line of sights. Buttplate end is 5” tall, 1-7/8” wide, to fit our #BP-BECK-2-B buttplate. A sliding wooden patchbox door cut from the same blank is included. Inlet for double set triggers and triggerguard #TG-BECK-1-B. Lock panels are shaped, pre-inlet for the large Siler flint lock #LOCK-SL-FL-RH, or percussion lock, #LOCK-SL-CL-RH. The side panel is inlet for the sideplate #SP-BECK-2-B
Specifications for pre-inlet stock:
- Drop and trigger reach: drop is 2-1/2" from the line of sights to heel, at 13-3/4" of pull
- Barrel channel size: American Heritage "B" profile 44" swamped barrel
- Butt end: 1-7/8" wide by 5" high, cut for buttplate
- Buttplate: #BP-BECK-2-B wax cast brass
- Lock, flint: #LOCK-SL-FL-RH large right hand Siler flint lock
- Lock, percussion: #LOCK-SL-CL-RH large right hand Siler percussion lock
- Ramrod hole & groove: 3/8" diameter, drilled full depth
- Ramrod pipes, entry: #RP-TC-GA-E-6-B brass or #RP-TC-DRT-E-6-I iron
- Ramrod pipes, forward: #RP-TC-GA-F-6-B brass or #RP-TC-DR-F-6-I iron
- Sideplate: #SP-BECK-2-B wax cast brass or #SP-BECK-2-I wax cast steel
- Trigger plate: #TR-DST-4 trigger and plate
- Triggerguard: #TG-BECK-1-B brass triggerguard or #TG-BECK-1-I iron triggerguard
