Lyman Great Plains Rifle, .50 caliber, 32" barrel, right hand, percussion, iron, factory box, unfired

Home > Guns > Percussion guns > Percussion rifles

Lyman Great Plains Rifle,
.50 caliber, 32" barrel,
right hand, percussion, iron,
factory box, unfired

Part Number:	AAW-473
Availability:
Price:	$575.00
Order Quantity:

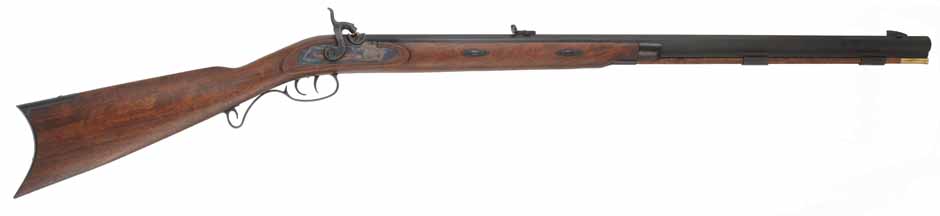

Stocked in walnut, trimmed in iron furniture, the Lyman Great Plains Rifle features a hooked breech, two wedge keys, double set triggers, elevation adjustable buckhorn rear sight, and 32" barrel. This rifle is said to be unfired, it does have a few small handling marks on the stock. It includes the factory box. Based on the original Hawken plains rifle, the Lyman Great Plains Rifle has improved design features, with hidden modern improvements in the lock, and an attractive price, make the Lyman Great Plains Rifle a compelling value for the big game hunter or serious shooter. The Plains Rifle was carried across the Great Plains, by western pioneers and fur trappers. It was the culmination of years of firearms development. The Lyman Great Plains Rifle is similar to rifles built by the famous Saint Louis rifle makers, Samuel Hawken, Gemmer, and Horace E. Dimick to the meet the demands of experienced backwoodsmen. Trigger reach is 14" and weight is 9.2 pounds. This rifle has the factory box with the additional non-adjustable rear sight.

This classic muzzleloading rifle is fitted with a .50 caliber by 32" barrel, with 1 turn in 60" twist, and deep rifling grooves, ideal for patched round ball target and hunting loads.The bore is bright in as new condition. The barrel is fitted with a steel blade front sight and semi buckhorn elevation adjustable rear sight. The top flat of the barrel is marked - LYMAN - MIDDLEFIELD, CONN - in antique style block letters. The diagonal flats are marked GREAT PLAINS RIFLE and the caliber, serial number, and proof marks.

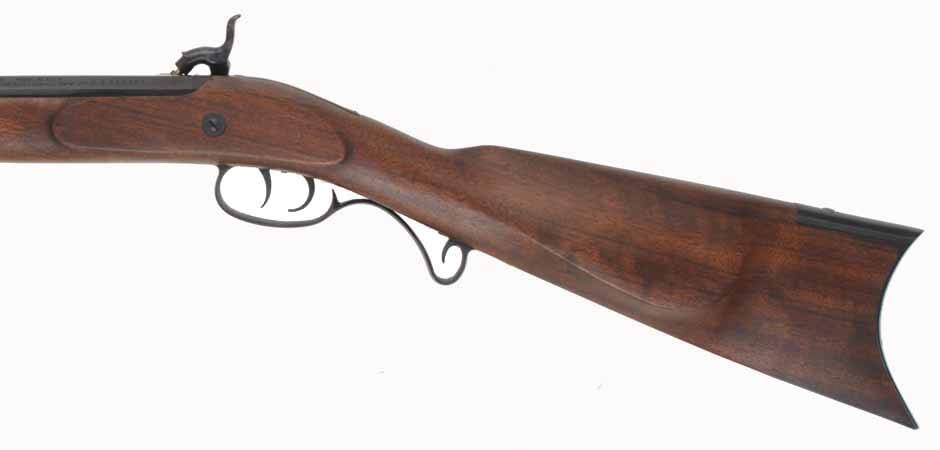

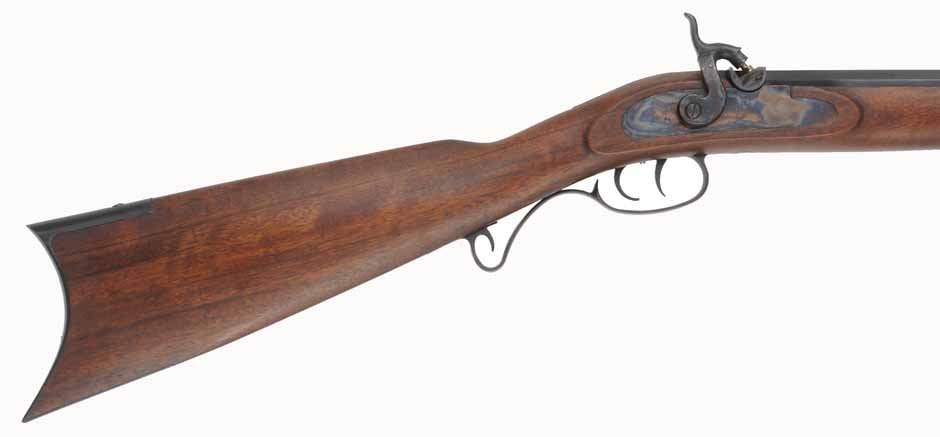

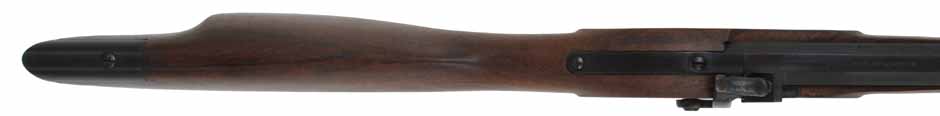

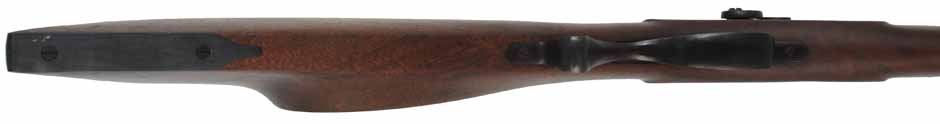

The walnut stock is finished to a dark brown. The buttstock is fitted with a classic plains rifle steel buttplate to securely engage the shooter's shoulder. All the furniture and barrel have a dark blue finish. Our bottom view shows the classic iron toeplate, with beaver tail finial, and the iron triggerguard. Both are shaped in the classic style of the Hawken brothers, of Saint Louis. A Hawken style hooked breech engages a separate tang, for ease of cleaning after shooting. This rifle features a correct iron ramrod entry thimble, and nose cap. Two tang screws retain the hooked breech plug's tang. The oval cheek rest is raised to support the shooter's cheek.

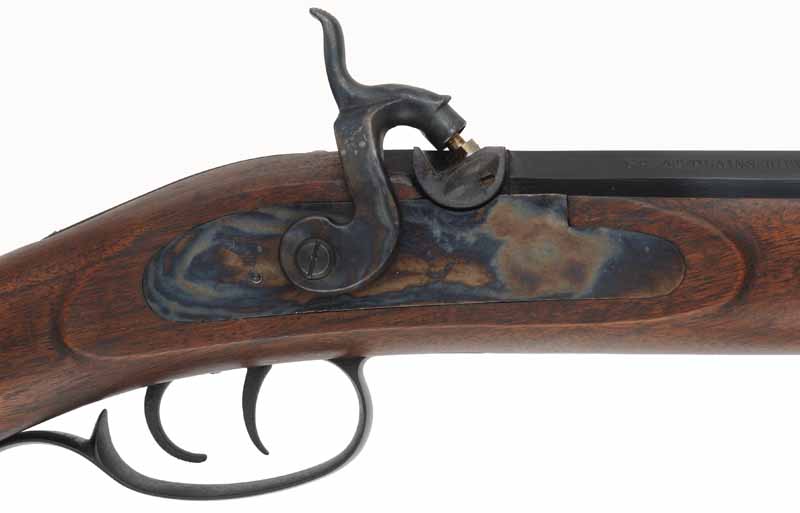

The lock plate and hammer are finished to a mottled color cased hardened blues and grays. The hooked breech is easily dismounted for cleaning. Two wedge keys are fitted through oval iron inlays. After pressing out the two wedge keys from the forend, withdraw the ramrod, and lift the muzzle end to unhook the breech. We stock the #RLGP-S stainless No. 11 nipple, with 6-.75mm threads, for Lyman percussion rifles. Double lever double set triggers are fitted, for target shooting, or hunting. The triggers are well adjusted, to allow cocking the lock, or setting the trigger, in any sequence. You may fire the rifle with the trigger set, for a hair trigger release. Or, fire this rifle with the trigger unset, for a firm normal trigger release, ideal for cold weather hunting, or youth training.

This rifle appears to be unfired with a few small handling marks on the stock. The bore is bright and has been well maintained. Order it for a ten day visual inspection. You will be delighted. Else if it does not fit you, return it in unfired condition for same-day refund. Postage is your only risk, when you order any one-of-a-kind gun from Track, whether new, used, or antique.

Ready to order? Click VIEW CART in the upper right of the screen, review items and quantities, then click CHECK OUT. Enter your name, address, and billing information for prompt shipment. Or, PRINT your order after entering your address, attach your check or money order, and send it by mail. Shipping cost is displayed after you enter your address.

Our web site displays actual in stock status, up-to-the-minute price, and shipping cost to every address in the USA and MOST OTHER COUNTRIES. International shipping cost for extra long or heavy parcels are determined after we weigh the parcel.

Ten day inspection begins at delivery. Send your approval. Else return it for same day refund, if not delighted. Postage is your only risk.

.490" round balls, pure lead, Hornady, per 100

Part Number:	BALL-490
Availability:
Price:	$19.29
Order Quantity:

.490" round balls, pure lead, hand cast, per 100

Part Number:	BALL-490-X
Availability:
Price:	$18.59
Order Quantity:

Track's best Black Powder BORE CLEAN Solvent, with flip-top spout

Part Number:	BORE-CLEAN
Availability:
Price:	$4.59
Order Quantity:

Ball puller, steel screw, .50 caliber brass collar, 10-32 thread

Part Number:	BP-50-10
Availability:
Price:	$3.99
Order Quantity:

Brass Capper, for No. 11 caps, straight line, made in the USA, by Tedd Cash

Part Number:	CAPPER-P
Availability:
Price:	$12.59
Order Quantity:

Powder Flask, brass body, brass dispensing valve, embossed Diamond or Basket Weave pattern accepts 10-1mm threaded spouts

Part Number:	FLASK-DIAMOND
Availability:
Price:	$59.99
Order Quantity:

Lyman Great Plains & Gemmer Hawken Rifle Front Sight, blued steel for Invest Arms produced rifles

Part Number:	FS-LYMAN-GPR
Availability:
Price:	$17.99

Jag, jagged cleaning tip, brass, .50 caliber, 3/8 rod, 10-32 thread

Part Number:	JS-50-6-10
Availability:
Price:	$4.59
Order Quantity:

Powder measure, brass, adjustable 0 to 120 grains, with spout

Part Number:	MAS-120
Availability:
Price:	$22.99
Order Quantity:

Shooting patches, .010" cotton, .50 - .59 caliber, per 100, wonder-lube

Part Number:	OX-10-50-W
Availability:
Price:	$6.39
Order Quantity:

Shooting patches, .015" cotton, .50 - .59 caliber, per 100, wonder-lube

Part Number:	OX-15-50-W
Availability:
Price:	$6.39
Order Quantity:

Cleaning Patches, 2-1/2" diameter, bag of 100, pure cotton flannel, for .45 to .58 caliber

Part Number:	OX-CLEAN-58C
Availability:
Price:	$5.79
Order Quantity:

Ramrod, 3/8" hickory, 48" long, brass tip, 10-32 thread Ramrods cannot be send to a P O Box.

Part Number:	RAMROD-6-10-B
Availability:
Price:	$18.99
Order Quantity:

Ramrod for Investarms Great Plains, Gemmer Hawken, Lyman Great Plains Rifle & Hunter by Investarms, 3/8" brown Delrin nylon, 32-1/2" long. Brass tips are threaded 10-32 at rear, with tempered steel ball puller hidden under the .50 caliber cleaning jag. For Lyman Great Plains Rifle with 32-1/2" ramrod. Made by Track of the Wolf, in Elk River, Minnesota, we make the brass tips and assemble the ramrod.

Part Number:	RAMROD-324-50
Availability:
Price:	$26.99
Order Quantity:

Ramrod for Investarms Great Plains, Gemmer Hawken, Lyman Great Plains Rifle & Hunter by Investarms, 3/8" brown Delrin nylon, 32-1/2" length, flared brass tip threaded 8-32 at front, 10-32 thread at rear. Made for the Lyman Great Plains Rifle with 32-1/2" ramrod.

Part Number:	RAMROD-324-LYM
Availability:
Price:	$26.99
Order Quantity:

Nipple, 6-.75mm metric thread, for Investarm Gemmer Hawken, Lyman Great Plains, Deerstalker, Trade Rifle #11 CCI cap, stainless steel

Cone length: 0.375"
Thread journal length: 0.195"
Overall length: 0.570"
Diameter of base: 0.307"

Part Number:	RLGP-S
Availability:
Price:	$5.99
Order Quantity:

Peep Rear Sight, adjustable, to fit Lyman Great Plains rifle

Part Number:	RS-57-GPR
Availability:
Price:	$122.99

Rear sight, semi-buckhorn for barrels up to 15/16", Lyman Great Plains Rifle

Part Number:	RS-LYMAN-GPR
Availability:
Price:	$18.00

Short Starter, patch & ball starter, 7/16" hickory rod for .50 caliber.

Part Number:	ST-7
Availability:
Price:	$9.99
Order Quantity:

Patch puller, corkscrew worm, steel, brass base, 10-32 thread

Part Number:	WORM-CORK-10
Availability:
Price:	$6.89
