Stock, Thompson Center, fullstock pre shaped, pre-inlet, 1" barrel, Thompson Center lock, plain maple

Home > Gun Parts > Stocks, shaped & pre-inlet > Upgrade & Replacement Stocks

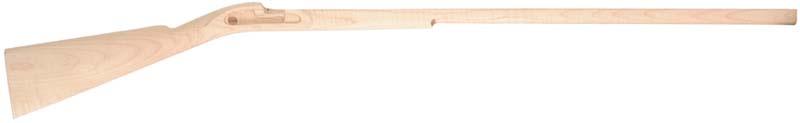

Stock, Thompson Center, fullstock pre shaped, pre-inlet, 1" barrel, Thompson Center lock, plain maple

Part Number:	STK-TCF-16-M3
Availability:
Price:	$329.00
Order Quantity:

Convert your Thompson Center Hawken or Renegade rifle or kit to a fullstock, using all your existing parts and this new fullstock. Be sure to order an additional wedge key and underlug, if using wedge keys to retain the barrel. We recommend using two of our thinner #Key-58-I and two #UL-104-A lug staples for this fullstock conversion. Pre-inlet for a 1" barrel up to 33-1/2" length, factory tang, lock, and double set triggers. This extra long stock may be cut to fit your buttplate, or select one of our steel buttplates, toeplate, and 3/8" rod pipes, to trim your rifle in steel. The stock is shaped with a beavertail cheek piece.

We are often asked how much work is required to restock a T/C Hawken, using our stock. Typically this project requires about 20 to 30 hours if it is your first such project. You must scrape in the final inletting at the tight spots, using our #INLET-BLACK or candle soot. You must drill pilot holes for the wood screws, et cetera. And you must shape, sand, and stain the stock to a smooth fine finish.

Pre-inlet for double set triggers. Use your existing Thompson Center triggers or upgrade to the R.E. Davis double lever double set triggers, #TR-DST-TC. This extra long stock may be cut to fit your buttplate, or select one of our steel buttplates, toeplate, and 3/8" rod pipes, to trim your rifle in steel. Stock is pre-inlet to accept your percussion of flint lock by Thompson Center. We also offer the L&R RPL replacement locks which could be used with this stock. We offer both flint, #LOCK-LR-03-F, and percussion #LOCK-LR-03-C.

Specifications for pre-inlet stock:

Drop and trigger reach: drop is 3" from the line of sights to heel, at 14-1/2" of pull
Barrel channel size: 1" straight octagon, up to 33-1/2" length
Breech plug tang: Inlet for factory T/C tang, 3-1/2" long
Breech plug, flint: #PLUG-TCF-16-3 1" flint breech, 3/4-16 thread
Breech plug, percussion: PLUG-T#C-16-3 1" percussion breech, 3/4-16 thread
Butt end: 1-1/2" wide by 4-1/2" high, not cut for buttplate
Lock, flint: #LOCK-LR-03-F L&R RPL Thompson Center replacement flint lock
Lock, percussion: #LOCK-LR-03-C L&R RPL Thompson Center replacement percussion lock
Ramrod hole & groove: 3/8" diameter, drilled full depth
Triggers: #TR-TC-HST double lever double set triggers by Thompson Center
Triggers: #TR-DST-TC double lever double set triggers by R.E. Davis
