Colt 1851 Navy Revolver, .36 caliber, 7-1/2" barrel, percussion, blued, walnut, new, in factory box, by A. Uberti

Home > Guns > Percussion guns > Percussion pistols & revolvers

Colt 1851 Navy Revolver,
.36 caliber, 7-1/2" barrel,
percussion, blued, walnut,
new, in factory box, by A. Uberti

Part Number:	AAW-598
Availability:
Price:	$349.00
Order Quantity:

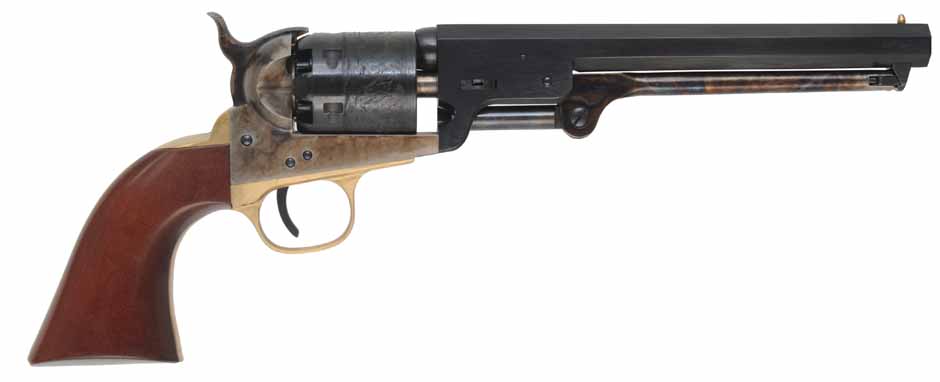

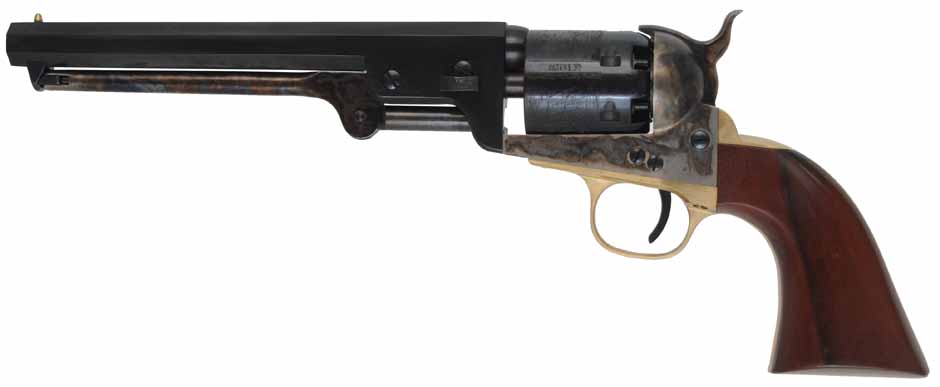

Known as the Colt Model 1851 Navy Revolver, the term "Navy" indicates that it is .36 caliber. In all actuality, the U. S. Army bought more of the 1851 Navy Model revolvers than the U. S. Navy purchased. Notice the color case hardened steel frame. Unlike less costly revolvers made with a brass frame, this revolver has the rugged steel frame, and will handle full loads for years, without the tendency to stretch, which can be a problem with brass frame revolvers when they are abused. The revolver is offered as new in the factory box with the paperwork.

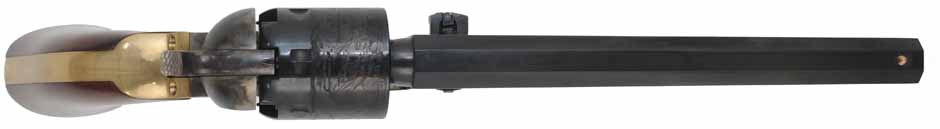

The barrel is unmarked on visible surfaces, except for the bottom flat, which is Cal .36 Black Powder Only - A. Uberti Italy . A pointed brass bead front sight is mounted near the muzzle. A notch in the hammer, serves as a rear sight. The notch in the hammer is small, for those who prefer a fine sight picture. Most modern target shooters prefer a larger notch. If you elect to enlarge the sight notch in the hammer, we recommend using our Swiss Pattern Needle Files, #FILE-SET-NEEDLE. One of these files has the perfect geometry to enlarge the notch. Go slowly, since the only other sight adjustment possibility is to shorten, or replace the bead front sight. Any gunsmith who replaces shotgun bead sights can easily do this, if you require a larger or taller front sight.

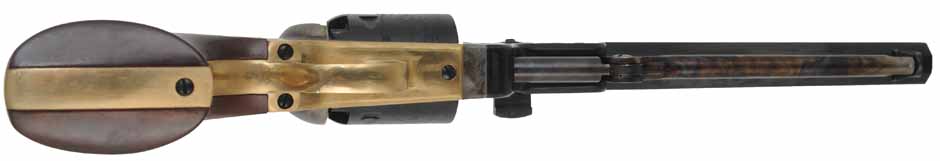

In new condition, the action is crisp, and the cylinder locks very tight. Trigger release is smooth and as light as the factory dares to make it. The cylinder is factory roll engraved with a Naval battle scene, as found on the original Colt 1851 Navy revolver. Our bottom view shows the color case hardened loading lever, blued wedge key, and the polished brass triggerguard and grip strap. Walnut grips are factory varnished to a satin finish, mounted in Colt style, finished in the classic Colt reddish brown color, made of one piece of walnut.

The factory recommends a .375" diameter round ball. We recommend our .380" diameter round ball #BALL-380-X for best compression. You may need to slightly chamfer the chamber mouths. If your revolver shaves lead, slightly polish each chamber mouth with fine emery and a marble, until the ball seats fully, compressing the lead instead of shearing it.

Disassembly for cleaning is easy. Drive the wedge key out of the barrel, using our brass wedge key punch. Slide off the barrel, and cylinder. Wipe down the frame and grip, but avoid disassembly. It is wise to completely strip and clean the action about once per year, using a well fitted screwdriver made to fit the small screws. Remove the nipples with our #NW-140 nipple wrench, and wash the barrel, nipples, and cylinder with a bottle brush, in hot soapy water. Dry the parts with a cloth, or rinse them in boiling water, and apply oil. Apply a touch of Birchwood Casey's Choke Tube Lubricant to the threads of the nipples, before re-installing them. This anti-seize will prevent the nipples from becoming stuck, a real problem with neglected revolvers.

This percussion revolver is offered in unfired condition, with the factory box and paperwork. The bore is bright, clean, and ready to shoot. Order it for a ten day visual inspection. You will be delighted. Else if it does not fit you, return it in unfired condition for same-day refund. Postage is your only risk, when you order any one-of-a-kind gun from Track, whether new, used, or antique

.375" round balls, pure lead, Hornady, per 100

Part Number:	BALL-375
Availability:
Price:	$12.99
Order Quantity:

.380" round balls, pure lead, hand cast, per 100

Part Number:	BALL-380-X
Availability:
Price:	$16.69
Order Quantity:

Choke Tube Lube, anti-seize grease, 3/4 ounce tube, by Birchwood Casey

Part Number:	BC-CTL
Availability:
Price:	$9.99
Order Quantity:

Belt, black leather, 1-3/4" wide, waist size 30 to 46

Part Number:	BELT-BU-1B
Availability:
Price:	$26.99
Order Quantity:

Track's best Black Powder BORE CLEAN Solvent, with flip-top spout

Part Number:	BORE-CLEAN
Availability:
Price:	$4.59
Order Quantity:

Brass Capper, for No. 11 caps, straight line, made in the USA, by Tedd Cash

Part Number:	CAPPER-P
Availability:
Price:	$12.59
Order Quantity:

Powder Flask, Colt pattern for Army & Navy revolvers, accepts all spouts with 10-1mm threads

Part Number:	FLASK-COLT
Availability:
Price:	$53.59
Order Quantity:

Military Holster, right hand, black leather, plain flap

Part Number:	HOLSTER-MB-R
Availability:
Price:	$32.99

Military Holster, left hand, black leather, U.S. marked flap

Part Number:	HOLSTER-US-L
Availability:
Price:	$32.99
Order Quantity:

Button jagged cleaning tip, .36 caliber, brass, 10-32 thread

Part Number:	JB-36-10
Availability:
Price:	$3.99
Order Quantity:

Nipple Wrench for Revolvers, for 1858 Remington .44 Revolver, .31 & .36 Pocket & Police Model Colt Revolvers, and other revolvers with a tight nipple recess

Part Number:	NW-130
Availability:
Price:	$9.99
Order Quantity:

Ox-Yoke Revolver Wonder Seal, 100 seals for .36 cal.

Part Number:	OX-REV-36-SEAL
Availability:
Price:	$9.99
Order Quantity:

.36 caliber revolver Wonder Wad, bag of 100 lubricated felt wads

Part Number:	OX-WAD-36-W
Availability:
Price:	$7.99
Order Quantity:

Nipple, 12-28 aka 5.5-.9mm metric thread, for most brands of .31/.36 Colt and Remington pocket revolvers and many Uberti 1851, 1860, 1861 Colt & 1858 Remington revolvers, Colt brand second generation 1851 & 1860 revolvers, #11 CCI cap, hardened steel

Cone length: 0.285"
Thread journal length: 0.200"
Overall length: 0.485"
Diameter of base: 0.295"

Part Number:	PTC-PI
Availability:
Price:	$4.99
Order Quantity:

Nipple, 12-28 aka 5.5-.9mm metric thread, for most brands of.31/.36 Colt and Remington pocket revolvers and many Uberti 1851, 1860, 1861 Colt & 1858 Remington revolvers, Colt brand second generation 1851 & 1860 revolvers, #11 CCI cap, stainless steel

Cone length: 0.285"
Thread journal length: 0.200"
Overall length: 0.485"
Diameter of base: 0.295"

Part Number:	PTC-PS
Availability:
Price:	$4.99
Order Quantity:
