1858 Remington New Model Army Revolver,
.44 caliber, 8" barrel,
percussion, blued steel frame,
stainless steel nipples, used, by FAP ~ Pietta

Part Number:	AAW-472
Availability:
Price:	$349.00
Order Quantity:

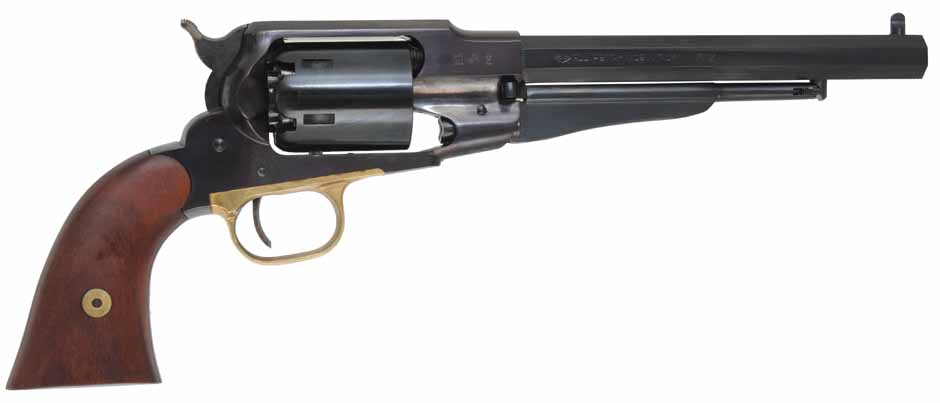

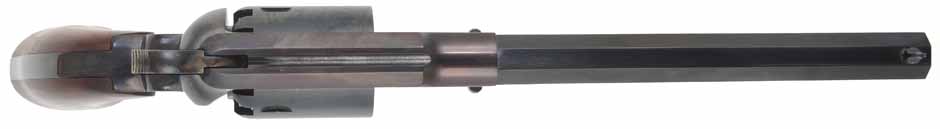

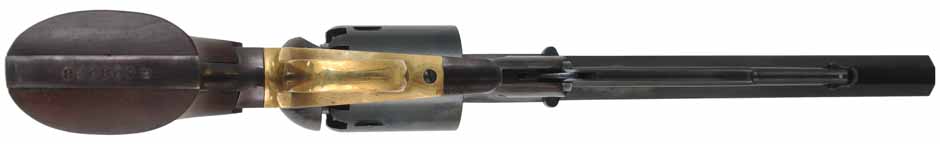

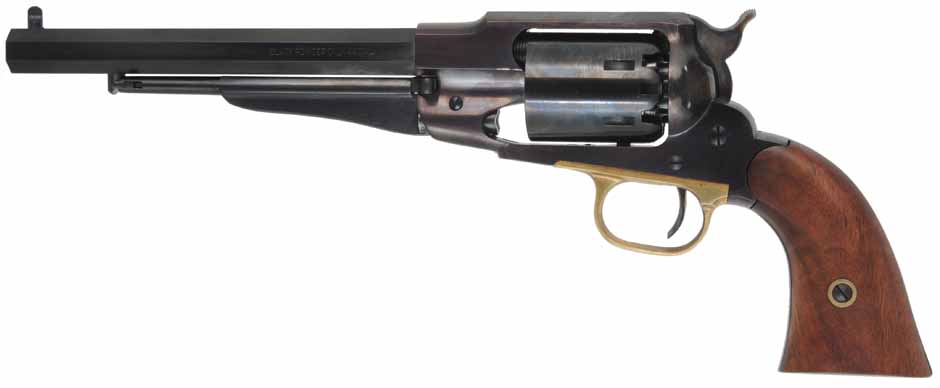

This nice 1858 Remington New Model Army revolver is in excellent condition and is fitted with stainless steel nipples for No. 11 percussion caps. The six factory nipples are also included. This .44 caliber steel frame revolver will give years of reliable service if properly maintained. The famous manufacturer is Pietta of Italy. The side flats of the barrel bear the maker's name, and Black Powder Only, .44 Cal.. The 8" octagon barrel is fitted with a post blade front sight. The notch in the center of the frame serves as the rear sight. The walnut grips are factory finished with a deep red satin varnish, mounted with a blued steel screw, through brass escutcheons. The traditional brass triggerguard is polished bright. The Remington trigger is wide and comfortable. The rigid steel frame of the 1858 Remington made it highly prized by its users. More officers carried Colt revolvers during our Civil War. When the war ended, more Remington's were purchased by discharged officers.

The original blued steel Italian nipples are too small to properly fit American No. 11 percussion caps. Those nipple have been replaced by our #PIR-LS 6-. 75mm thread stainless steel nipples which are designed to accept CCI No. 11 caps. The blued cylinder has the Remington safety notches cut between each nipple recess. Pull the hammer to half-cock, turn the cylinder to align the safety notch with the hammer nose, and set the hammer into the notch. You can safely carry this revolver with all six chambers loaded, if you rest the hammer in a safety notch.

The factory recommends our #BALL-451 pure lead .451" round ball, but we strongly prefer the slightly larger #BALL-454 Hornady .454" round ball, which provides better compression, noticeably more power, and best accuracy. However, an oversize ball tends to shear lead at each chamber mouth, changing the size and bullet weight, a problem. This revolver has slightly chamfered chamber mouths. If your revolver shaves lead, slightly polish each chamber mouth with fine emery and a marble, until the ball seats fully, compressing the lead instead of shearing it.

This percussion revolver is in excellent condition with stainless steel nipples for No. 11 caps fitted. Order it for a ten day visual inspection. You will be delighted. Else if it does not fit you, return it in unfired condition for same-day refund. Postage is your only risk, when you order any one-of-a-kind gun from Track, whether new, used, or antique.

Adobe Reader required to view the files below.

pietta-revolver-manual.pdf Last updated:9/11/2012 (1 MB)

Ready to order? Click VIEW CART in the upper right of the screen, review items and quantities, then click CHECK OUT. Enter your name, address, and billing information for prompt shipment. Or, PRINT your order after entering your address, attach your check or money order, and send it by mail. Shipping cost is displayed after you enter your address.

Our web site displays actual in stock status, up-to-the-minute price, and shipping cost to every address in the USA and MOST OTHER COUNTRIES. International shipping cost for extra long or heavy parcels are determined after we weigh the parcel.

Ten day inspection begins at delivery. Send your approval. Else return it for same day refund, if not delighted. Postage is your only risk.

Bullets .450" diameter, 200 grain, conical revolver bullet for .44 Army Revolvers, cast from LEE 90382, pure lead, per 50

Part Number:	BALL-450-200
Availability:
Price:	$17.99
Order Quantity:

.451" round balls, pure lead, Hornady, per 100

Part Number:	BALL-451
Availability:
Price:	$17.59
Order Quantity:

.454" round balls, pure lead, Hornady, per 100

Part Number:	BALL-454
Availability:
Price:	$17.99
Order Quantity:

.454" round balls, pure lead, hand cast, per 100

Part Number:	BALL-454-X
Availability:
Price:	$17.79
Order Quantity:

Choke Tube Lube, anti-seize grease, 3/4 ounce tube, by Birchwood Casey

Part Number:	BC-CTL
Availability:
Price:	$9.99

Track's best Black Powder BORE CLEAN Solvent, with flip-top spout

Part Number:	BORE-CLEAN
Availability:
Price:	$4.59
Order Quantity:

Bore brush, bronze, for .45 caliber, 10-32 thread

Part Number:	BRUSH-45-10
Availability:
Price:	$4.29
Order Quantity:

Powder Flask, Remington Pistol style flask, copper, with patina finish, accepts 10-1mm threaded spouts

Part Number:	FLASK-REMIN
Availability:
Price:	$48.00

Button jagged cleaning tip, .44 caliber, brass, 8-32 thread

Part Number:	JB-44-8
Availability:
Price:	$3.99
Order Quantity:

Nipple Wrench for Revolvers, for 1858 Remington .44 Revolver, .31 & .36 Pocket & Police Model Colt Revolvers, and other revolvers with a tight nipple recess

Part Number:	NW-130
Availability:
Price:	$9.99
Order Quantity:

Cleaning Patches, 2" diameter, bag of 100, pure cotton flannel, for .30 to .40 caliber

Part Number:	OX-CLEAN-45C
Availability:
Price:	$4.49
Order Quantity:

Ox-Yoke Revolver Wonder Seal, 100 seals for .44-.45 cal.

Part Number:	OX-REV-44-SEAL
Availability:
Price:	$9.99
Order Quantity:

.44/.45 caliber revolver Wonder Wad, bag of 100 lubricated felt wads

Part Number:	OX-WAD-44-W
Availability:
Price:	$7.99
Order Quantity:

Nipple, 6-.75mm metric thread, .319" long cone for most FAP - Pietta Remington, Pietta Colt, Pietta Le Mat replica revolvers, fits Pietta 1873 Colt Percussion, #11 CCI cap, hardened steel

Cone length: 0.319"
Thread journal length: 0.225"
Overall length: 0.544"
Diameter of base: 0.307"

Part Number:	PIR-LI
Availability:
Price:	$4.99
Order Quantity:

Nipple, 6-.75mm metric thread, .319" long cone for most FAP - Pietta Remington, Pietta Colt, Pietta Le Mat replica revolvers, fits Pietta 1873 Colt Percussion, #11 CCI cap, stainless steel

Cone length: 0.319"
Thread journal length: 0.225"
Overall length: 0.544"
Diameter of base: 0.307"

Part Number:	PIR-LS
Availability:
Price:	$4.99
Order Quantity:
