1851 Navy Percussion Revolver, .44 caliber, 7-3/8" barrel, color hardened steel frame, unfired with factory box, by Pietta

Home > Guns > Percussion guns > Percussion pistols & revolvers

1851 Navy Percussion Revolver,
.44 caliber, 7-3/8" barrel,
color hardened steel frame,
unfired with factory box, by Pietta

Part Number:	AAW-449
Availability:
Price:	$299.99
Order Quantity:

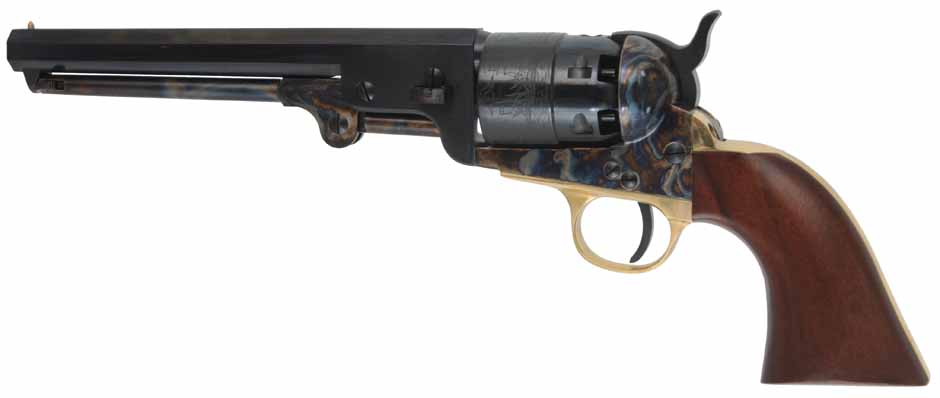

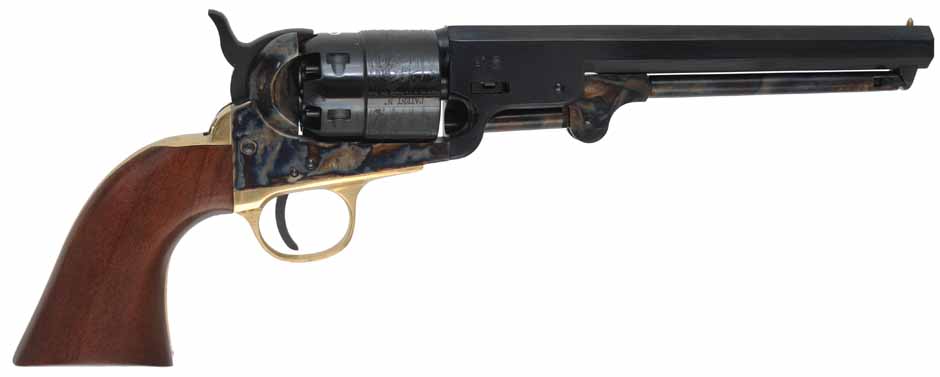

Known as the Colt Model 1851 Navy Revolver, the term "Navy" should indicate that it is .36 caliber. Instead, this revolver is made in "Army" designated .44 caliber. We doubt that Colt's Patent Firearms Company ever made their Model 1851 Navy in .44 caliber, but many others recognized that this was a popular model, with a comfortable grip, and they copied it in the most desirable .44 caliber. This revolver is as new unfired with the factory box.

The action is crisp, and the cylinder locks very tight. Trigger release is smooth and as light as the factory dares to make it. The 7-3/8" blued octagon barrel, is unmarked on the top flat. The Black Powder Only - .44 Cal. and F.LLIPIETTA - Made in Italy warnings and manufacturer markings are neatly positioned under the loading lever. A pointed brass bead front sight is mounted near the muzzle. A notch in the hammer, serves as a rear sight.

This revolver has the rugged steel frame, and will handle full loads for years, without the tendency to wear prematurely. The loading lever is color case hardened steel, and the triggerguard and backstrap are brass. The walnut grips are finished reddish brown, mounted in Colt style, made of one piece of walnut.

Disassembly for cleaning is easy. Drive the wedge key out of the barrel, using our brass wedge key punch. Slide off the barrel, and cylinder. Wipe down the frame and grip, but avoid disassembly. It is wise to completely strip and clean the action about once per year, using a well fitted screwdriver, made to fit the small screws. Remove the nipples with our #NW-140 wrench, and wash the barrel, nipples, and cylinder with a bottle brush, in hot soapy water. Dry the parts with a cloth, or rinse them in boiling water, and apply oil. Apply a touch of Birchwood Casey's Choke Tube Lubricant to the threads of the nipples, before re-installing them. This anti-seize will prevent the nipples from becoming stuck due to powder fouling.

The gun maker has slightly chamfered the chamber mouths on this revolver. This allows loading a .454" round ball, without shaving lead which changes the bullet weight. Instead, the whole ball is compressed into the chamber, improving ignition and energy. The bore is rifled, with seven equal lands and grooves, fast twist, and the factory recommends a .451" round ball. We prefer the better compression and tighter fit of the .454" round ball. If your percussion revolver has a sharp cylinder mouth, it may cut lead, reducing accuracy. Chamfer the mouth of each chamber, slightly, until the ball seats snugly, without cutting lead. You may prefer to slightly increase the amount of chamfer at each chamber on this revolver, if shaves lead from a round ball or bullet, during loading.

Order it for a ten day visual inspection. You will be delighted. Else if it does not fit you, return it in unfired condition for same-day refund. Postage is your only risk, when you order any one-of-a-kind gun from Track, whether new, used, or antique.

Adobe Reader required to view the files below.

pietta-revolver-manual.pdf Last updated:9/11/2012 (1 MB)

Bullets .450" diameter, 200 grain, conical revolver bullet for .44 Army Revolvers, cast from LEE 90382, pure lead, per 50

Part Number:	BALL-450-200
Availability:
Price:	$17.99
Order Quantity:

.451" round balls, pure lead, Hornady, per 100

Part Number:	BALL-451
Availability:
Price:	$17.59
Order Quantity:

.454" round balls, pure lead, Hornady, per 100

Part Number:	BALL-454
Availability:
Price:	$17.99
Order Quantity:

Choke Tube Lube, anti-seize grease, 3/4 ounce tube, by Birchwood Casey

Part Number:	BC-CTL
Availability:
Price:	$9.99

Belt, black leather, 1-3/4" wide, waist size 30 to 46

Part Number:	BELT-BU-1B
Availability:
Price:	$26.99
Order Quantity:

Track's best Black Powder BORE CLEAN Solvent, with flip-top spout

Part Number:	BORE-CLEAN
Availability:
Price:	$4.59
Order Quantity:

Bore mop, 100% Cotton, for .45 caliber, 10-32 thread, washable

Part Number:	BORE-MOP-45-10
Availability:
Price:	$3.99
Order Quantity:

Bore brush, bronze, for .45 caliber, 10-32 thread

Part Number:	BRUSH-45-10
Availability:
Price:	$4.29
Order Quantity:

Brass Capper, for No. 11 caps, straight line, made in the USA, by Tedd Cash

Part Number:	CAPPER-P
Availability:
Price:	$12.59
Order Quantity:

Powder Flask, Colt pattern for Army & Navy revolvers, accepts all spouts with 10-1mm threads

Part Number:	FLASK-COLT
Availability:
Price:	$53.59
Order Quantity:

Powder Flask, Remington Pistol style flask, copper, with patina finish, accepts 10-1mm threaded spouts

Part Number:	FLASK-REMIN
Availability:
Price:	$48.00

Military Holster, right hand, black leather, plain flap

Part Number:	HOLSTER-MB-R
Availability:
Price:	$32.99
Order Quantity:

Button jagged cleaning tip, .44 caliber, brass, 10-32 thread

Part Number:	JB-44-10
Availability:
Price:	$3.99
Order Quantity:

Trapper's MINK OIL TALLOW, patch grease, for match shooting & cold weather hunting, one 8 oz. tin

Part Number:	MINK-OIL
Availability:
Price:	$8.59

Nipple Wrench for Revolvers, for 1858 Remington .44 Revolver, .31 & .36 Pocket & Police Model Colt Revolvers, and other revolvers with a tight nipple recess

Part Number:	NW-130
Availability:
Price:	$9.99
Order Quantity:

Cleaning Patches, 2" diameter, bag of 100, pure cotton flannel, for .30 to .40 caliber

Part Number:	OX-CLEAN-45C
Availability:
Price:	$4.49
Order Quantity:

Ox-Yoke Revolver Wonder Seal, 100 seals for .44-.45 cal.

Part Number:	OX-REV-44-SEAL
Availability:
Price:	$9.99
Order Quantity:

.44/.45 caliber revolver Wonder Wad, bag of 100 lubricated felt wads

Part Number:	OX-WAD-44-W
Availability:
Price:	$7.99
Order Quantity:

Spring steel nipple pick, with bone bead handle

Part Number:	PICK-NIPPLE
Availability:
Price:	$3.59
Order Quantity:

Nipple, 6-.75mm metric thread, .319" long cone for most FAP - Pietta Remington, Pietta Colt, Pietta Le Mat replica revolvers, fits Pietta 1873 Colt Percussion, #11 CCI cap, stainless steel

Cone length: 0.319"
Thread journal length: 0.225"
Overall length: 0.544"
Diameter of base: 0.307"

Part Number:	PIR-LS
Availability:
Price:	$4.99
Order Quantity:

Drift Punch, knurled brass, for wedge keys and sights.

Part Number:	TOOL-KEY-B
Availability:
Price:	$5.29
Order Quantity:
